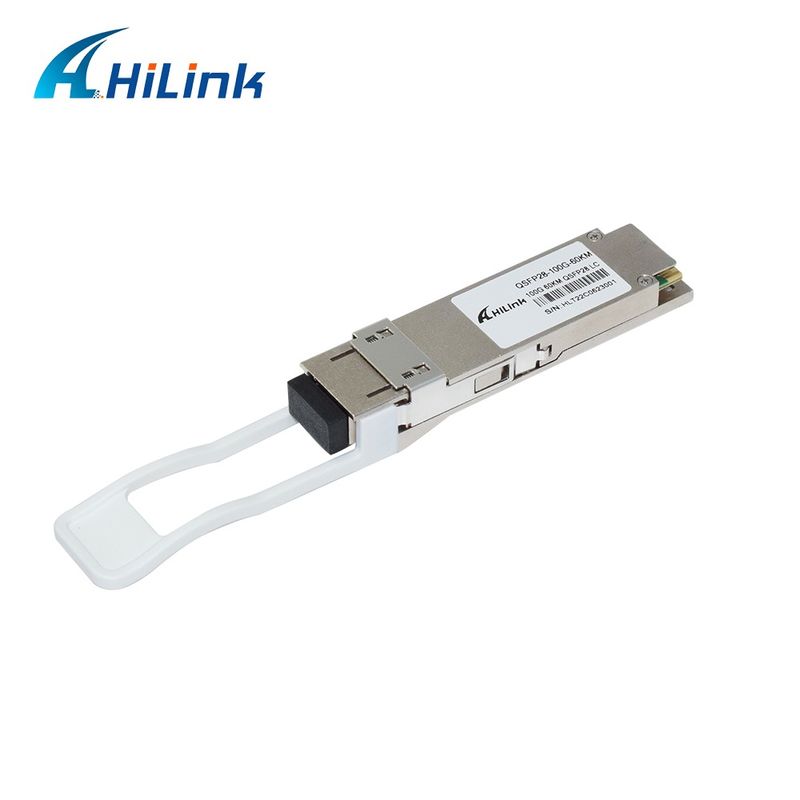

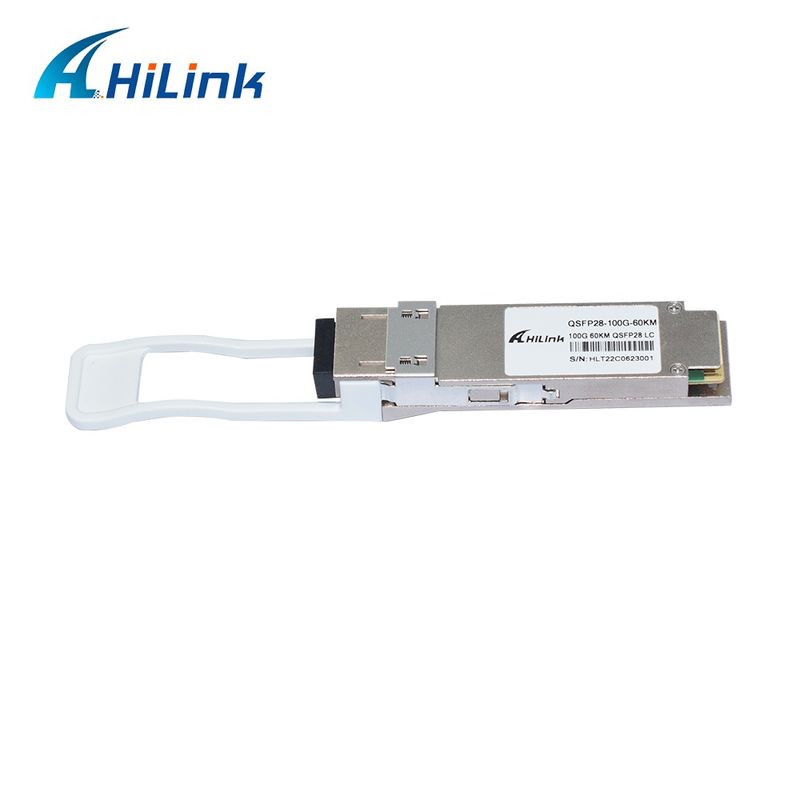

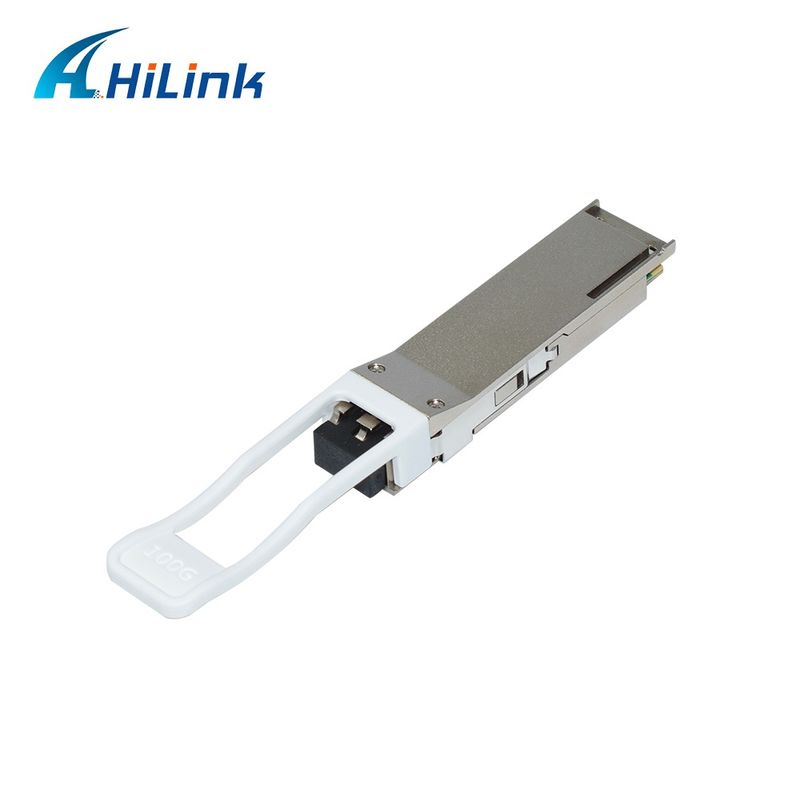

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA Single mode DDM

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA Single mode DDM

Τόπος καταγωγής:

Γκουανγκντόνγκ, Κίνα

Μάρκα:

Hilink

Πιστοποίηση:

CE RoHs

Αριθμό μοντέλου:

HL-QSFP28 100G 60KM

Επικοινωνήστε μαζί μας
Ζητήστε μια προσφορά
Λεπτομέρειες για το προϊόν
Ονομασία των προϊόντων:
100G QSFP28 60KM
Συνδετήρας:
Δυαδική LC
Ανώτατη απόσταση καλωδίων:
60km
εγγύηση:
3 έτη
Οργανωτής κατασκευής:
Υποστήριξη
Χρόνος Παράδοσης:
3-7 εργάσιμες μέρες
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min
1pcs
Τιμή
Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες
Κανονική συσκευασία ή OEM.
Χρόνος παράδοσης
5-8 εργάσιμες ημέρες
Όροι πληρωμής
L/C, T/T, Western Union
Δυνατότητα προσφοράς
3000 τεμάχια/μήνα
Περιγραφή του προϊόντος

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA  Single mode DDM


Features

4 lanes MUX/DEMUX design

Support 100GBASE-ZR4 lite for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps LAN WDM EML laser and PIN receiver with SOA

Aggregate bandwidth of > 100Gbps

Duplex LC connectors

Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Support FEC(Forward Error Correction)


Applications

100GBASE-ZR4 lite


Descriptions

HL-QSFP28 100G 60KM is designed for 60km optical communication applications. This module contains 4

lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter

face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

A block diagram is shown in Figure 1.


100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA  Single mode DDM 0

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA  Single mode DDM 1
