40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

10km 40G QSFP+ LR4

Compliant with 40G Ethernet IEEE802.3ba Fiber Optic Transceiver

Τόπος καταγωγής:

Guangdong, Κίνα

Μάρκα:

HILINK

Πιστοποίηση:

CE FCC Rohs

Αριθμό μοντέλου:

Επικαιροποιημένα συστήματα υποδομής

Επικοινωνήστε μαζί μας
Ζητήστε μια προσφορά
Λεπτομέρειες για το προϊόν
Όνομα προϊόντων:
40G QSFP+ 10χλμ
Connetor:
Διπλός LC
Ρυθμός δεδομένων:
40G
Απόσταση:
10χλμ.
Κλίμακα θερμοκρασίας:
0°C ~ +70°C
Πιστοποίηση:
RoHS Compliant
Τύπος:
Οι πομποδέκτες οπτικών ινών, 40G QSFP+
Ψηφιακές διαγνωστικές λειτουργίες:
Ενσωματωμένος
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min
1 PCS
Τιμή
EXW: 1084~1176USD/PCS
Συσκευασία λεπτομέρειες
Η στατική τσάντα, πλαστικό επίπεδο, λιανικό κιβώτιο, απαιτεί κοντά
Χρόνος παράδοσης
5-8workingdays
Όροι πληρωμής
Western Union, t/t, l/c
Δυνατότητα προσφοράς
100pcs/μήνα
Συγγενικά προϊόντα
Επικοινωνήστε μαζί μας
86-755-8317-6243
Επικοινωνήστε τώρα
Περιγραφή του προϊόντος
40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant
Product Description

The HL-QSFP-40G-LR4 is a high-performance transceiver module designed for 10km optical communication applications. Compliant with 40GBASE-LR4 of the IEEE P802.3ba standard, this module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Key Features
  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
  • QSFP MSA compliant
  • Up to 10km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Operating temperature range: 0°C to 70°C
  • RoHS Compliant
Applications
  • Rack to rack connections
  • Data center switches and routers
  • Metro networks
  • 40G BASE-LR4 Ethernet links
Product Images

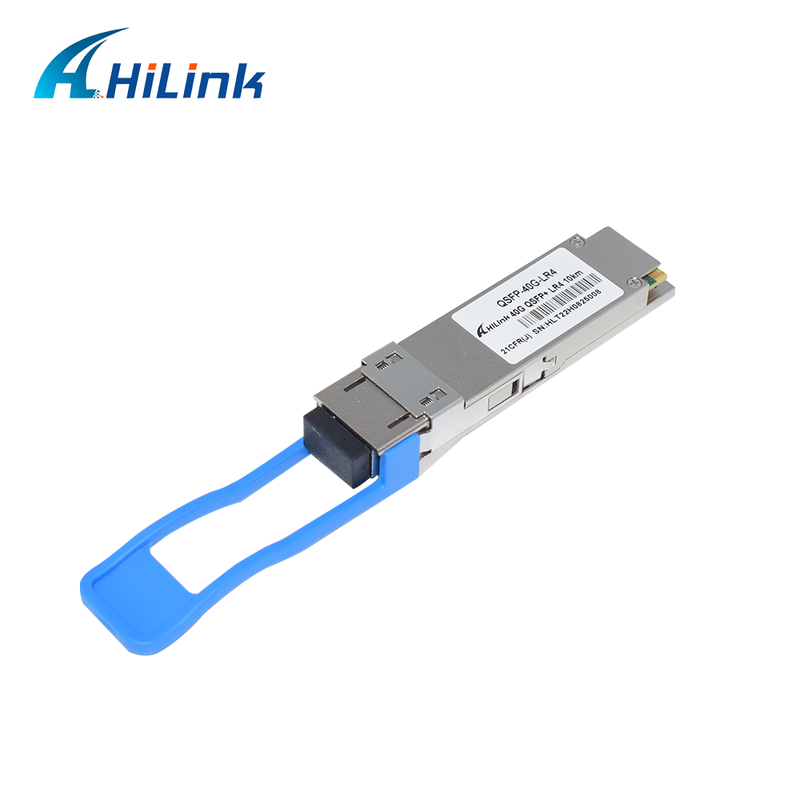

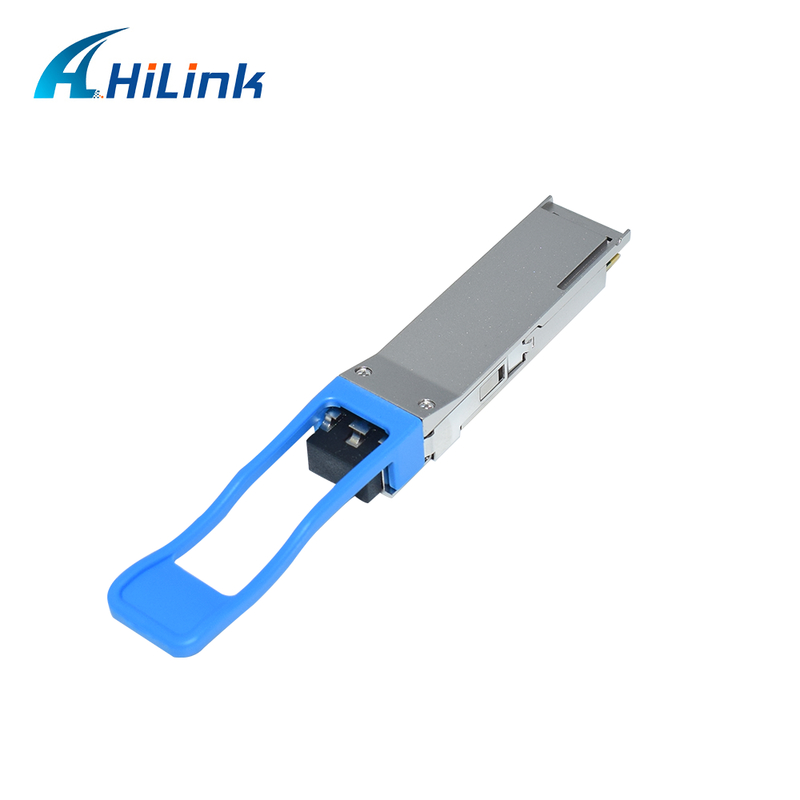

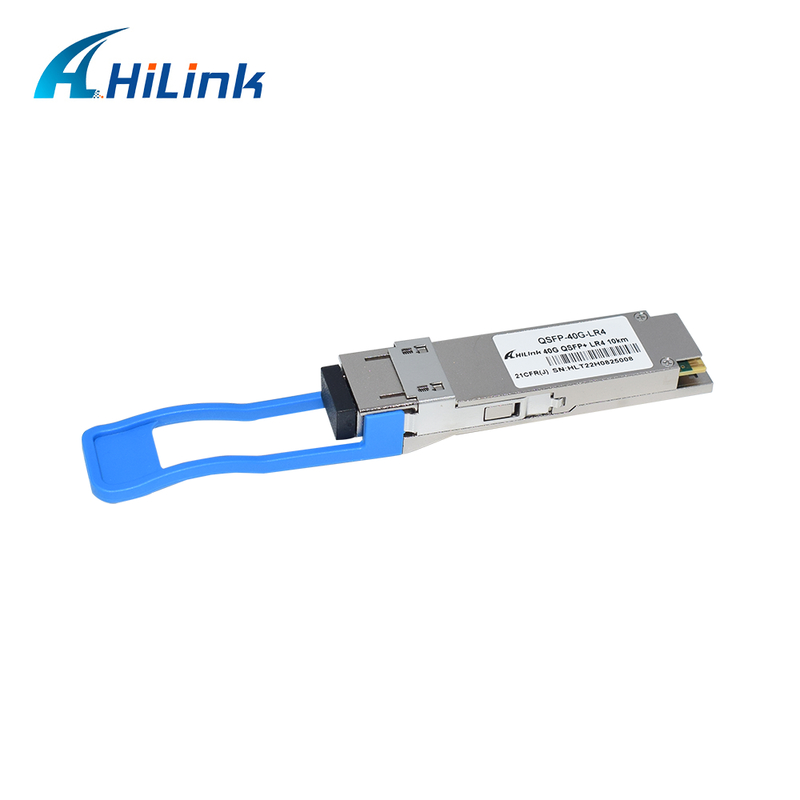

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 0 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 1 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 2
Our Services

OEM and ODM: Custom OEM/ODM orders are available for this product.

Quality Guarantee

All advertised optical transceivers are brand new with new components and never use old or refurbished materials. Each unit undergoes functional testing and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.

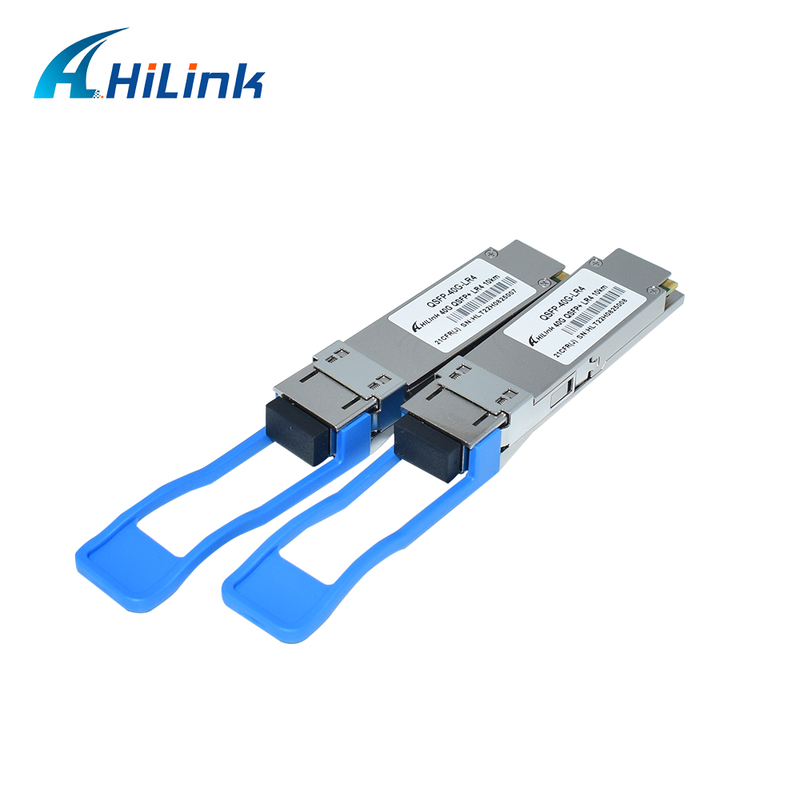

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 3
