Product Overview

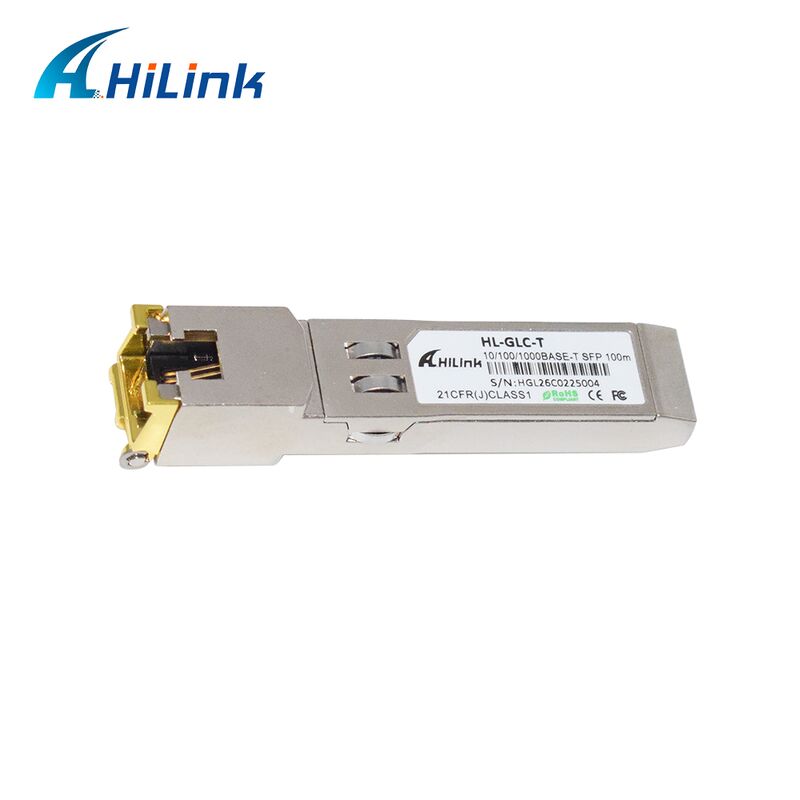

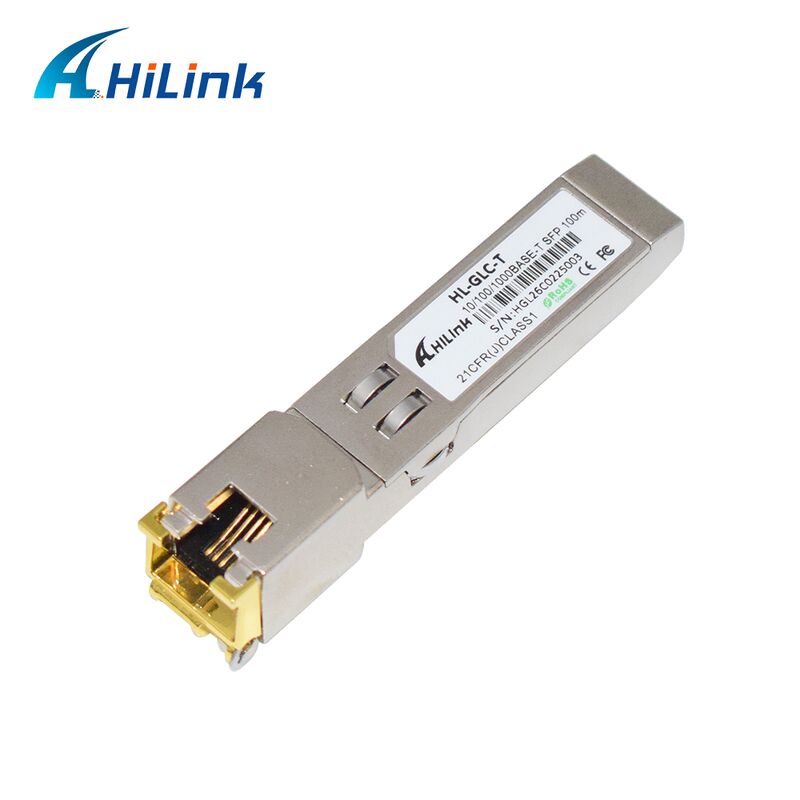

10/100/1000BASE-T SFP Transceiver Copper RJ45 GLC-T for Gigabit Ethernet
Product Description
The HL-SFP-Tx Copper Small Form Pluggable (SFP) transceiver is a high-performance, cost-effective module compliant with Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab. It supports 1000Mbps data rates up to 100 meters over unshielded twisted-pair category 5 cable.
Technical Specifications
This module supports 1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals, utilizing all four pairs in the cable with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, accessible via the 2-wire serial CMOS EEPROM protocol.
Key Features
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- TX Disable and RX Los/without Los function
- Fully metallic enclosure for low EMI
- +3.3V single power supply
- Low power dissipation (1.05 W typical)
- Compact RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- 1000 BASE-T operation in host systems with SERDES interface
- 10/100/1000Mbps compliant in host systems with SGMII interface
- Operating case temperature range: Standard (0 to +70°C) and Industrial (-40 to +85°C)
OEM and ODM Support
This 100Base-TX Copper SFP Transceiver supports SFP-based switch 100Base-FX ports that accept standard 100Base-FX optics SFP.
Gigabit Ethernet SFP Transceiver Compatibility
| Cisco Part Number |
Description |
| GLC-T= |
1000BASE-T SFP transceiver module for Category 5 copper wire, RJ-45 connector |
| GLC-SX-MM= |
1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, dual LC/PC connector |
| GLC-LH-SM= |
1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1310-nm wavelength, dual LC/PC connector |
| GLC-ZX-SM= |
1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, dual LC/PC connector |
Product Images
Mechanical Specifications
Frequently Asked Questions
Do you sell second-hand products?
No. All our products are brand new, we never use second-hand components.
What payment terms do you accept?
T/T, PayPal, Western Union are acceptable.
What are the shipping ways can you offer?
Our usual shipping ways are DHL, FedEx, TNT, UPS, EMS etc. It will take 3-7 days.
Do your products come with warranty?
Yes, We provide 3 years warranty for all our products from the date of shipment.
What devices can your products compatible with?
Our products are compatible with Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
How to place an order?
1. Order details confirmed - please tell us the model and quantity you need.
2. Proforma Invoice confirmed - the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods - tracking number will be sent to you promptly.
4. We will help to track your goods until you receive them safely.
As we have various kinds of products, if you can't find the correct item you need, please send us inquiry. We will follow up shortly.
