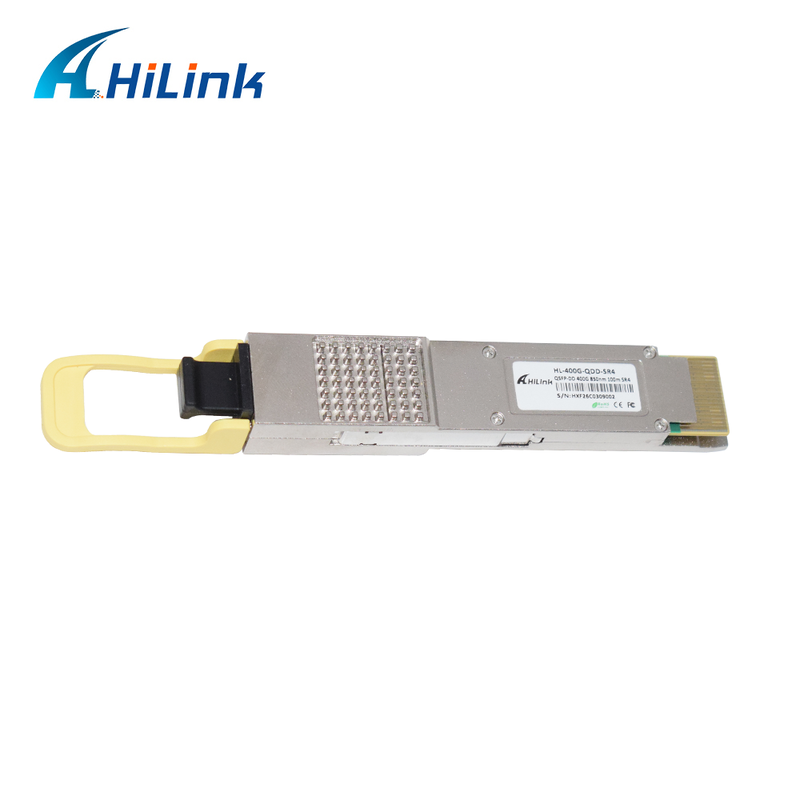

Name: Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QDD-400G-SR4
Price: 230.00 USD
Availability: InStock

Σπίτι > προϊόντα > Οπτική ενότητα πομποδεκτών >

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

Τόπος καταγωγής:

Γκουανγκντόνγκ, Κίνα

Μάρκα:

Hilink

Πιστοποίηση:

CE RoHs

Αριθμό μοντέλου:

HL-QDD-400G-SR4

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

Λεπτομέρειες για το προϊόν

Όνομα προϊόντος:

400G QSFP-DD SR4

Ρυθμός δεδομένων:

400 γρ

Μήκος κύματος:

850 nm

Απόσταση:

100μ

Συνδετήρας:

MPO-12

Εγγύηση:

3 Χρόνια

Χρόνος Παράδοσης:

3-7 εργάσιμες

OEM:

υποστήριξη

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 τεμ

Τιμή

200~260USD

Συσκευασία λεπτομέρειες

Κανονική συσκευασία ή OEM

Χρόνος παράδοσης

5-8 εργάσιμες

Όροι πληρωμής

L/C,T/T,Western Union

Συγγενικά προϊόντα

Hilink 10Gbps XFP Optical Transceiver with 80km Reach Duplex LC DDM Interface RoHS Compliant

Πάρτε την καλύτερη τιμή

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

Πάρτε την καλύτερη τιμή

25Gb/s 40Km 1270/1310nm SFP28 BIDI δέκτες

Πάρτε την καλύτερη τιμή

25G SFP28 BIDI 50km DDM Πηρακτήρας

Πάρτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

Hilink Compatible Module HL-QDD-400G-SR4 400G QSFP-DD SR4 850nm 100m MPO-12

Product Overview

This 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module is designed for 100m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. On the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.

An optical fiber cable with an MPO-12 connector can be plugged into the QSFP-DD SR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. Electrical connection is achieved through a QSFP-DD MSA-compliant edge type connector. This product meets QSFP-DD MSA Type2 specifications and is designed to withstand harsh external operating conditions including temperature, humidity and EMI interference.

Key Features

QSFP-DD MSA Compliant
CMIS compliance
Optical Interface: IEEE 802.3db compliant
Electrical Interface: IEEE 802.3 2022 400GAUI-8
Support 425Gb/s aggregate bit rate
4 Parallel optical lanes
MPO-12 connector
Maximum link length of 70m on OM3 or 100m on OM4
Operating case temperature 0 to 70℃
Maximum power consumption 8W
I2C interface for status monitoring and control

Applications

Ethernet networks
Telecommunications systems
Infiniband applications

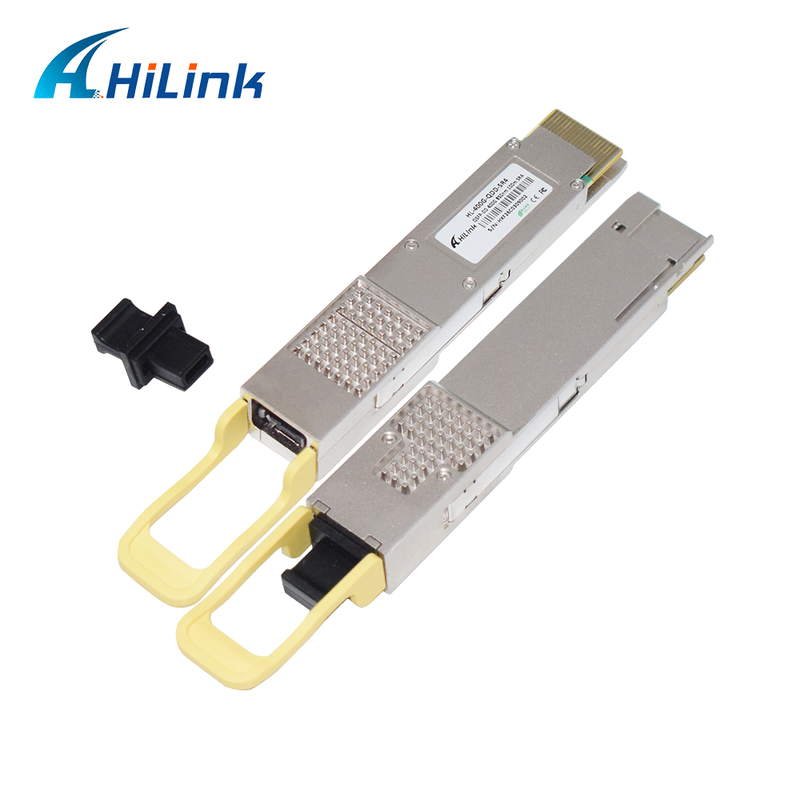

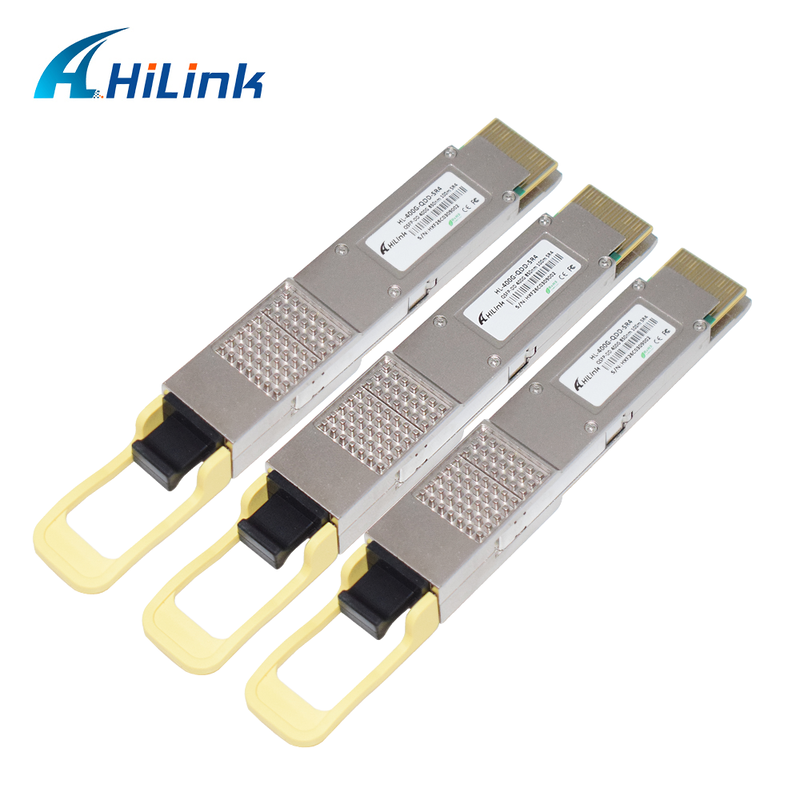

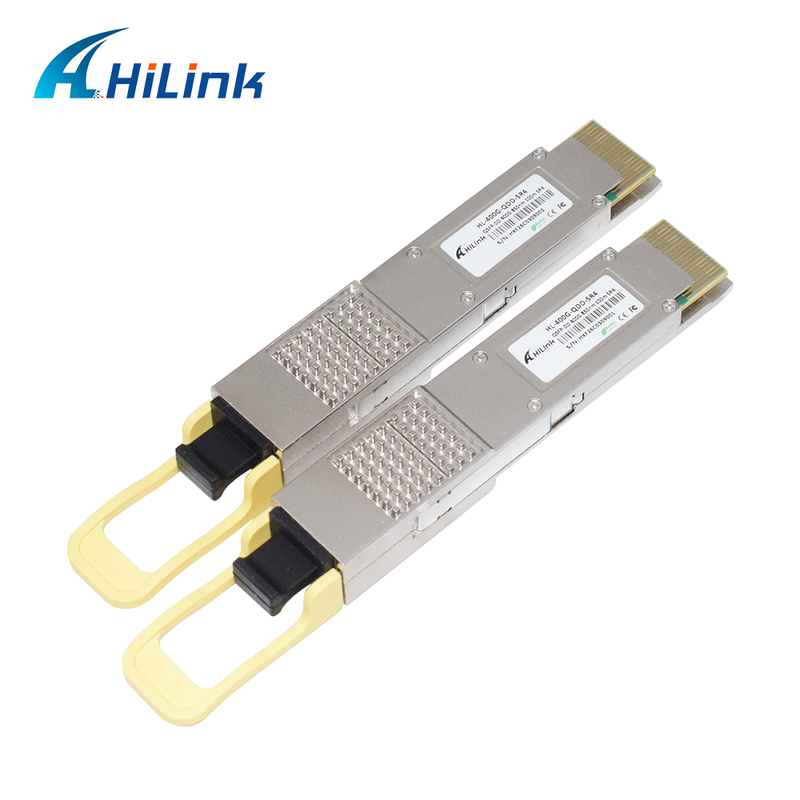

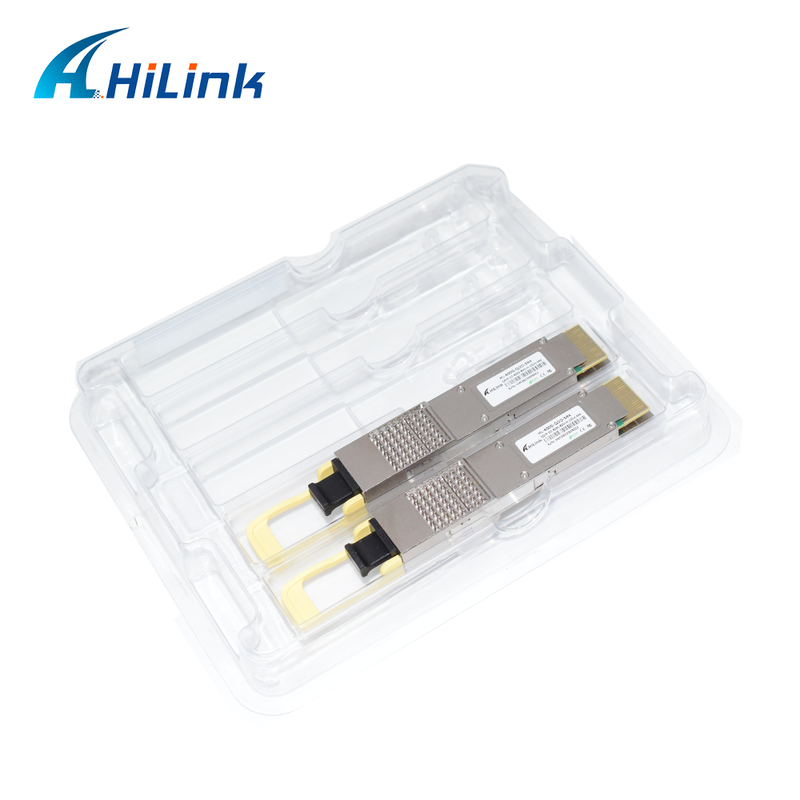

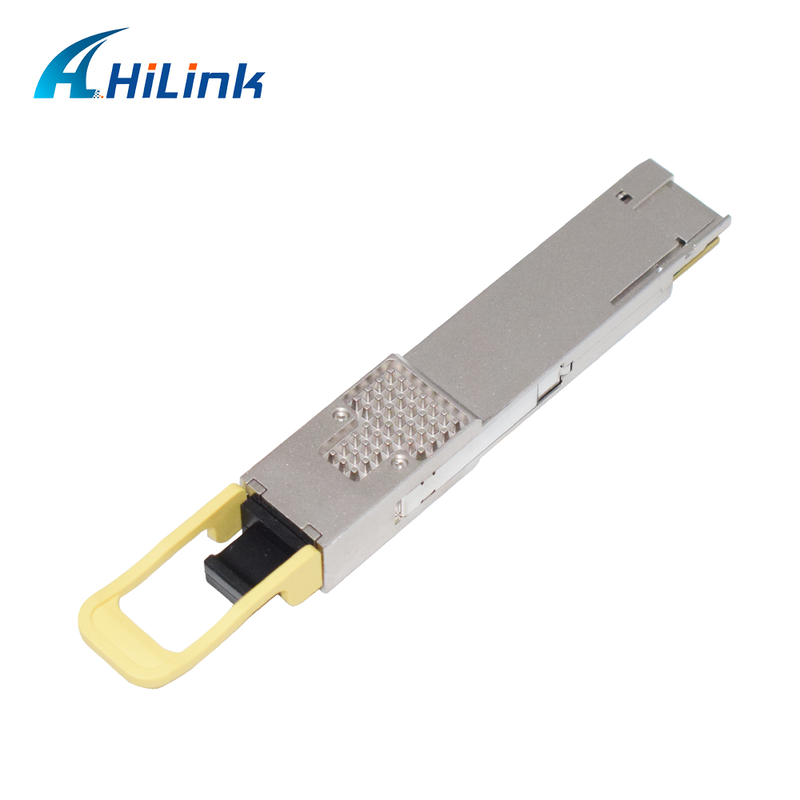

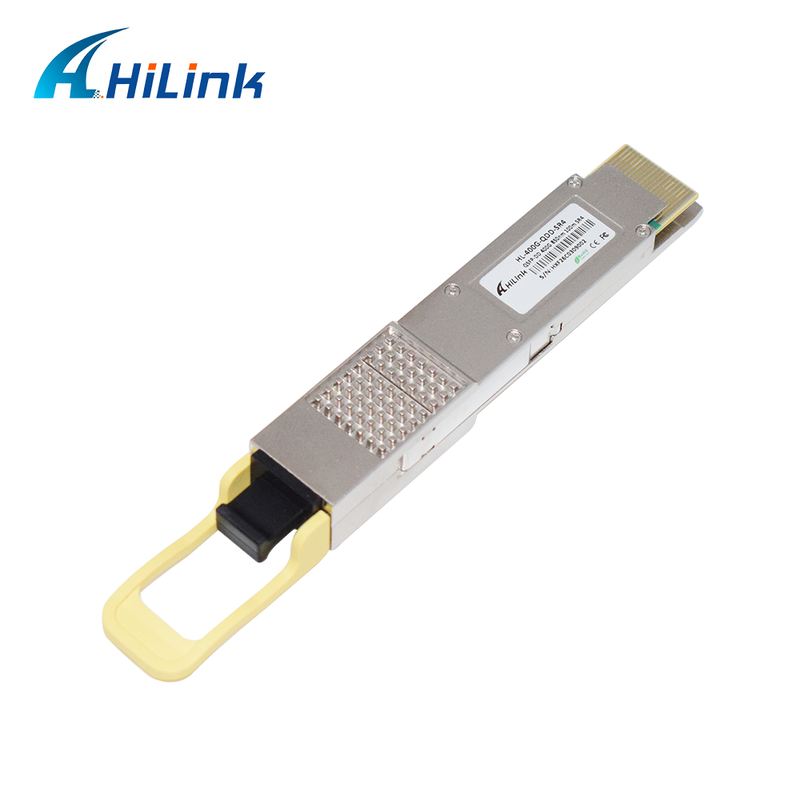

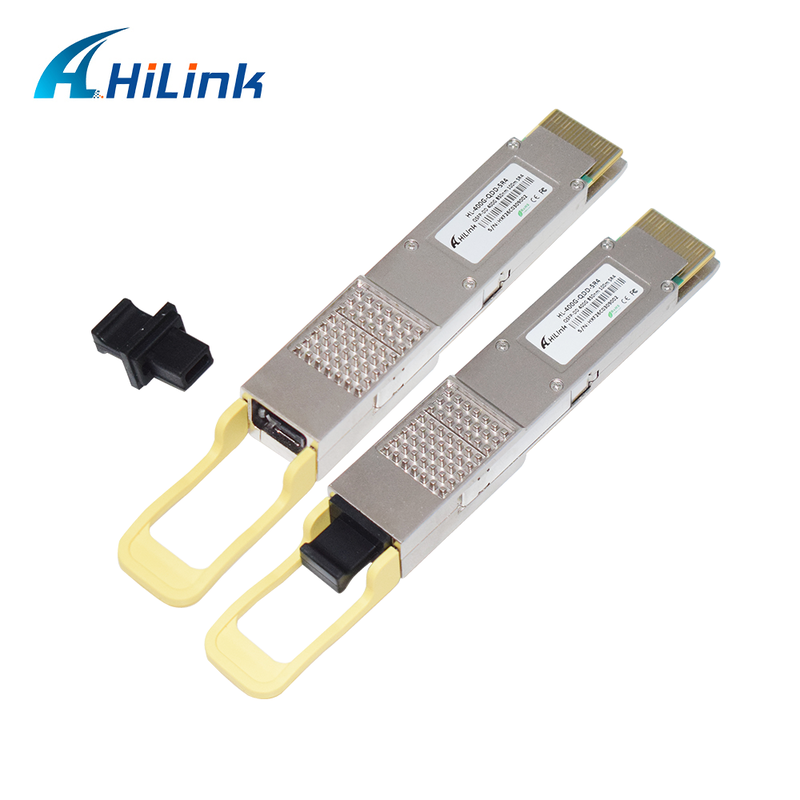

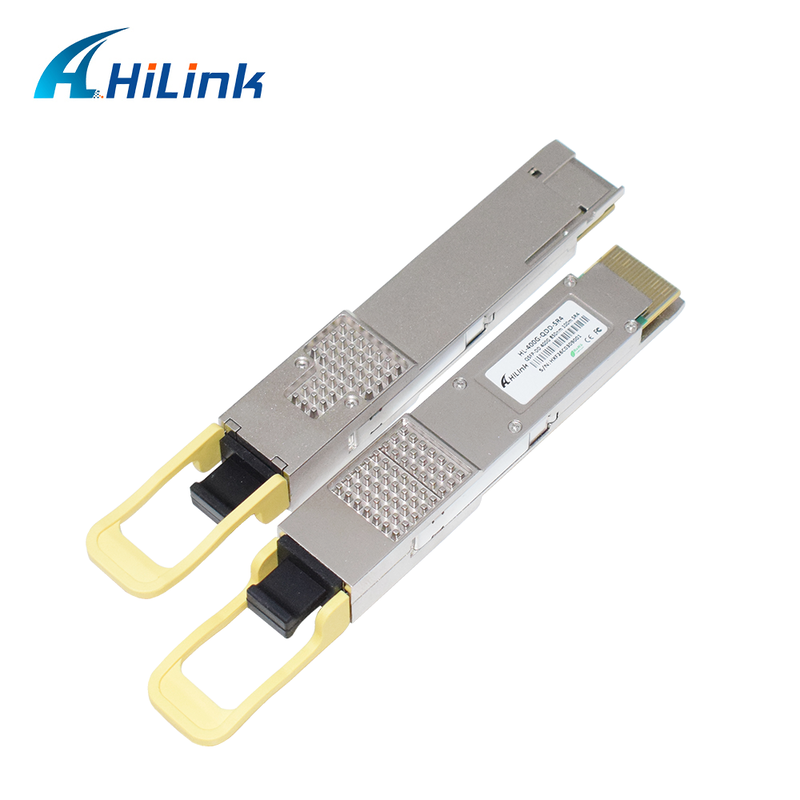

Product Images

Company Information

OEM/ODM orders are available upon request.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with mainstream network switches and equipment.

How to place an order?

Confirm order details - provide the model and quantity you need
Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
Confirm and ship goods - tracking number will be sent promptly
We'll help track your shipment until safe delivery
